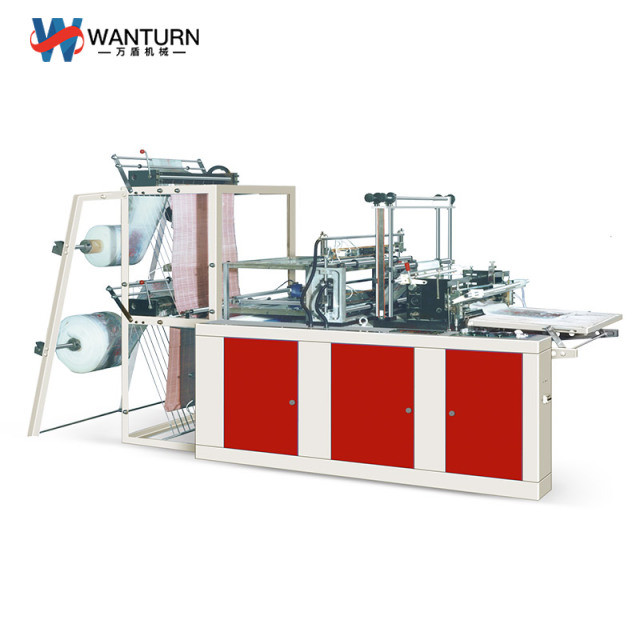

It is used for producing vest bags and flat-opening bags with printing. The main motor is a frequency-conversion motor for higher power efficiency and more freely regulated speed. The excellent color-code tracker achieves more accurate sealing and cutting length and fewer errors. The machine uses an advanced computer to adjust the length more freely and accurately.
|
Model |
GFQ-600 |
GFQ-700 |
GFQ-900 |
GFQ-1000 |
|
Bag-making width |
550mm |
650mm |
850mm |
1000mm |
|
Bag-making length |
1600mm |
1600mm |
1600mm |
1600mm |
|
Bag-making thickness |
0.008-0.10mm |
0.008-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
|
Speed range |
40-120pcs/min |
40-120pcs/min |
40-120pcs/min |
40-120pcs/min |
|
Error in Length |
±1mn |
±1mn |
±1mn |
±1mn |
|
Power of Main Engine |
1.1 |
1.1 |
1.5 |
1.5 |
|
Total Power |
4 |
4.2 |
5 |
7.2 |
|
Weight of Machine |
700 |
760 |
900 |
1100 |
|
Overall Dimension |
3100×1100×1800 |
3100×1200×1800 |
3200×1400×1850 |
3200×1600×1850 |
The data is subject to change without prior notice.
