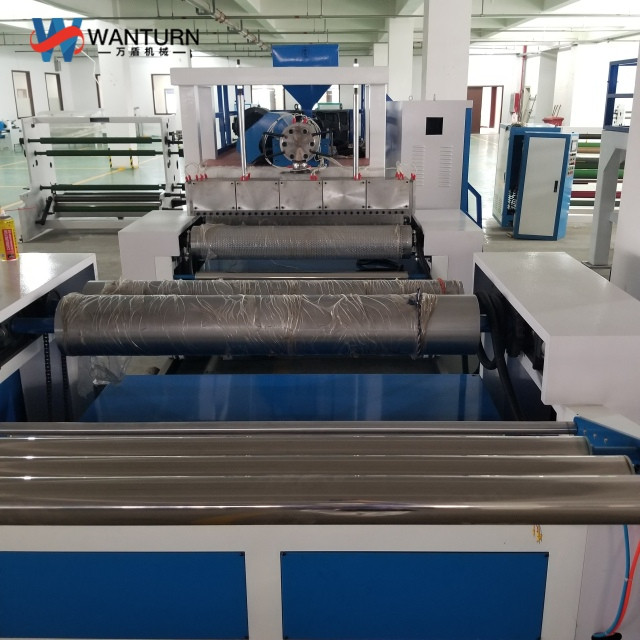

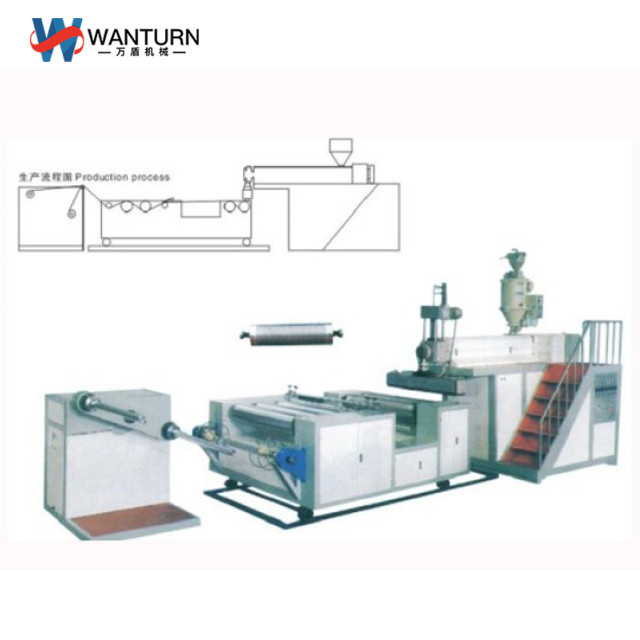

1. Main parts: Extruder, Control Panel, Bubble forming section, Winder;

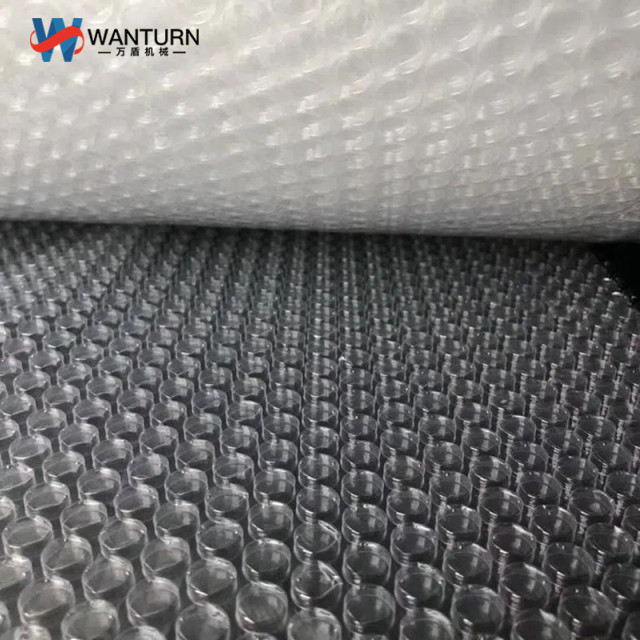

2. To produce 2 layers air bubble film (bubble layer base layer);
3. Film width from 1,000mm to 3,000mm;
4. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;

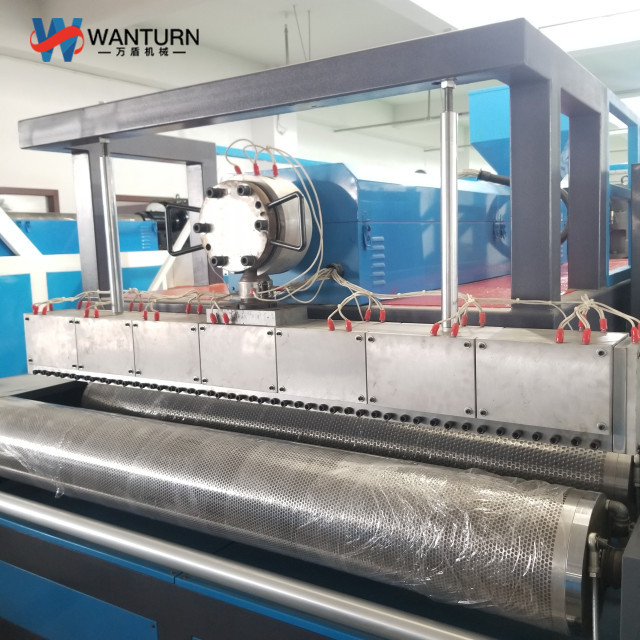

5. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.
|
Model |
WTPE-600 |
WTPE-800 |
WTPE-1000 |
|
Diameter of Screw Stem |
φ50 mm |
φ55 mm |
φ60 mm |
|
L/D Ratio of Screw |
30:1 |
30:1 |
30:1 |
|
Material of Scerw & Barrel |
38 CrMoALA |
38 CrMoALA |
38 CrMoALA |
|
Width of T-die Head |
750 mm |
950 mm |
1150 mm |
|
Heating Way |
Casting-aluminum heating device |
Casting-aluminum heating device |
Casting-aluminum heating device |
|

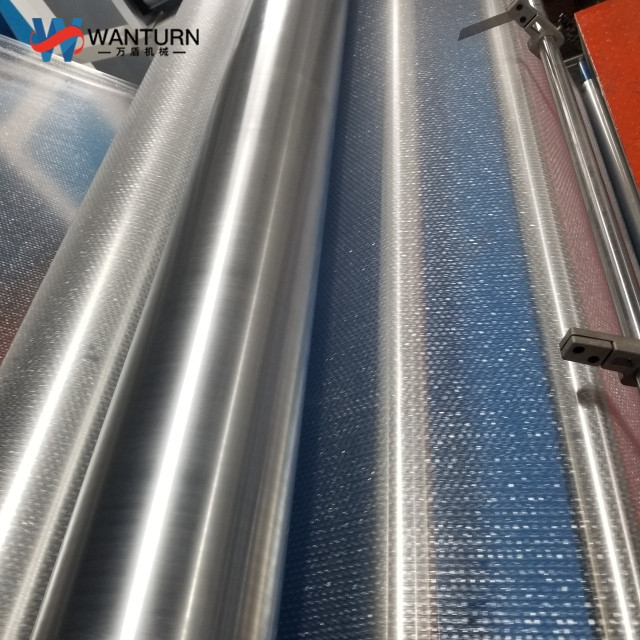

Width of Bubble Roller |
680 mm |
880 mm |
1080 mm |
|
Width of Products |
600 mm |
800 mm |
1000 mm |
|
Thickness |
0. 06--0.25 mm |
0. 06-0. 25 mm |
0. 06-0. 25 mm |
|
Main Motor |
7.5 kw |
11 kw |
15 kw |
|
Tractiong Motor |
0.75 kw*2 |
1.1 kw*2 |
1.1 kw*2 |
|
Total Power |
30 kw |
35 kw |
30 kw |
|
Rewinder |
Turnover duplex turret rewinding type |
Turnover duplex turret rewinding type |
Turnover duplex turret rewinding type |
|
Max. Output |
35 kg/h |
45 kg/h |
50 kg/h |
|
Linear Speed |
1000 m/h |
1000 m/h |
1000 m/h |
