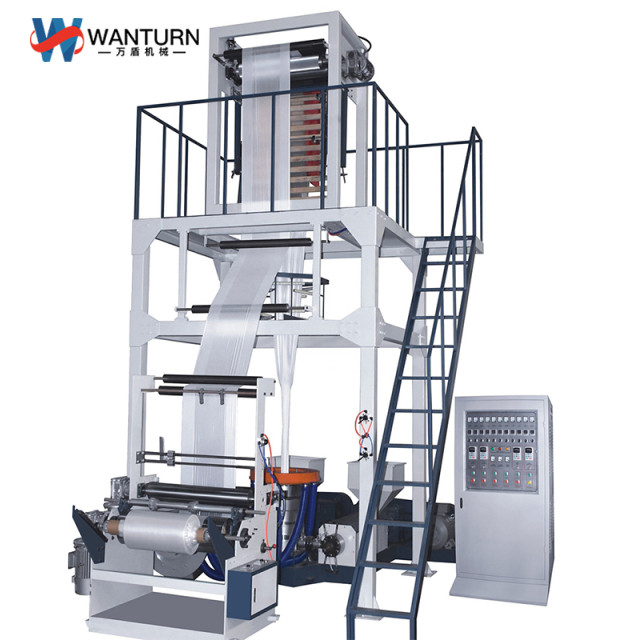

The Three-Layer Co-Extrusion Blow-Thinning Production Line Adopts A New Type Of High-Efficiency And Low-Energy-Consumption Extrusion Unit, IBC Film Bubble Internal Cooling System, ±360°Horizontal Upward Traction And Rotation System, Photoelectric Automatic Deviation Correction Device, Automatic Winding And Film Tension Control, Computer Screen Automatic Advanced Technologies Such As Control Systems.
|
Model |
WT-ABA-700 |
WT-ABA-900 |
WT-ABA-1100 |
WT-ABA-1300 |
WT-ABA-1600 |
|
Applicable Materials |
LDPE LLDPE LDPE |
||||
|
Width of Film |
600 |
800 |
1000 |
1200 |
1500 |
|
Thickness of Film |
0.008-0.10 |
0.008-0.10 |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
|
Max. Extrusion Output |
HDPE:60kg/h |
HDPE:75kg/h |
HDPE:80kg/h |
HDPE:90kg/h |
HDPE:110kg/h |
|
LDPE:70kg/h |
LDPE:85kg/h |
LDPE:90kg/h |
LDPE:100kg/h |
LDPE:120kg/h |
|
|
Extruder |
|||||
|
Screw Diameter |
Φ45x2 |
Φ50x2 |
Φ50x2 |
Φ55x2 |
Φ60x2 |
|
Screw L/D Ratio |
30:1 |
||||
|
Screw Material |
SAC-645/38CRMOALA |
||||
|
Feeding Tube Material |
SAC-645/38CRMOALA |
||||
|
Feeding Tube Cooling |
180Wx3 |
180Wx3 |
180Wx3 |
180Wx3 |
180Wx4 |
|
Main Motor Power |
11kWx2 |
15kWx2 |
15kWx2 |
18.5kWx2 |
22kWx2 |
|
Temperature Control Point |
3 |
3 |
3 |
3 |
4 |
|
Screen Changer |
|||||
|
For network type |
Manual Change |
||||
|
Temperature Control Point |
1 |
1 |
1 |
1 |
1 |
|
Die Head |
|||||
|
Die Diameter |
HDPE:Φ55mm |
HDPE:Φ80mm |
HDPE:Φ110mm |
HDPE:Φ130mm |
HDPE:Φ150mm |
|
LDPE:Φ160mm |
LDPE:Φ180mm |
LDPE:Φ220mm |
LDPE:Φ250mm |
LDPE:Φ300mm |
|
|
Cooling Air Ring Type |
Double Air Duct |
||||
|
Blower Power |
3kW |
4kW |
4kW |
5.5kW |
7.5kW |
|
Extraction device |
|||||
|
Pull The Toll width |
700 |
900 |
1100 |
1300 |
1600 |
|
The Speed of Extraction |
10-80 |
||||
|
Trigger Motor Power |
1.5kW |
2.2kW |
2.2kW |
3kW |
3kW |
|
Stability Ring |
1 |
||||
|
Winding Device |
|||||
|
Coiling Type |
Back To Back |
||||
|
Effective Width |
600 |
800 |
1000 |
1200 |
1500 |
|
Maximum Winding iameter |
800 |
||||
|
Take The Roll |
Φ250x700L |
Φ250x900L |
Φ250x1100L |
Φ250x1300L |
Φ250x1600L |
|
Air Up The Scroll |
2 sets |
||||
|
Land size (m) |
5x3.5x5 |
5.5x3.7x5 |
6x3.9x5.2 |
6.5x4.1x5.2 |
7x4.2x6 |
|
Optional device |
Corona processor, hydraulic fast screen changer, back to back automatic coiler, rotary head |
||||
The data is subject to change without prior notice.
1. IBC film bubble internal cooling system
2. Computer centralized control system
1. 360 Horizontal traction rotation
2. Automatic coiling
