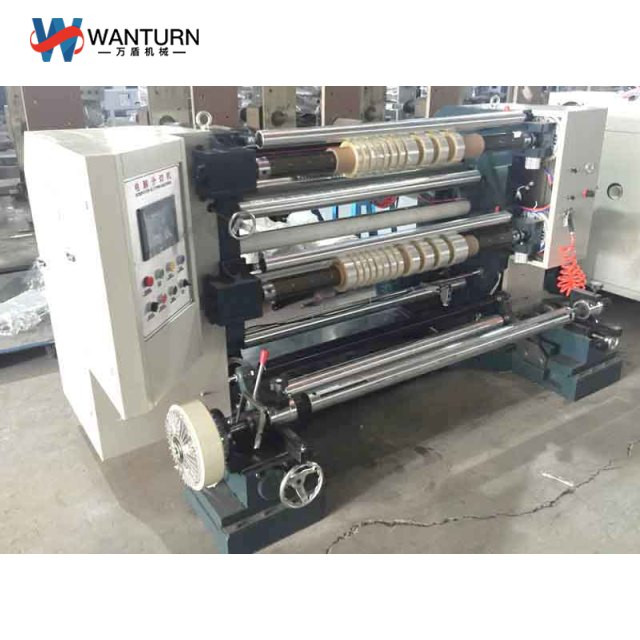

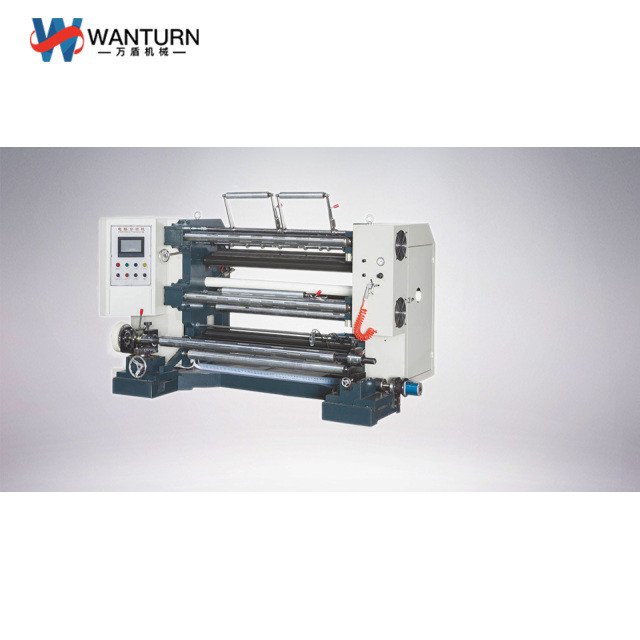

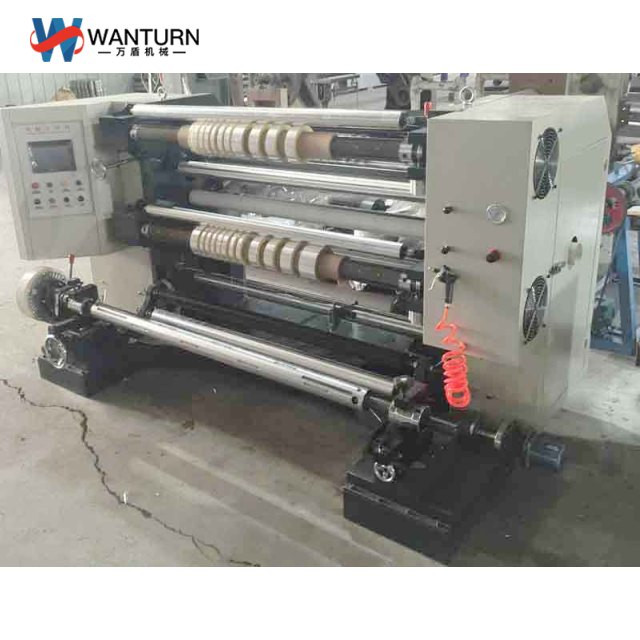

1, The maximum diameter of unwinding φ 600mm (core φ 76)
2. Maximum width of unwinding 1300mm
3, The maximum diameter of winding φ 420 (core φ 76× φ 95)
4, Wnding width of 50-1300mm
5, Maximum speed 200m/min (depending on material)
6, Cutting thickness of 10-75μm
7, Slitting accuracy ±0.5mm
9. The total power is about 3KW
10. Weight of the machine is about 1800kg
11, The machine dimensions (length × width × height) 1570×2800×1500mm
Description of the main parts：
1. Unwinding part：
(1) Structure
A) Unwinding adopts passive unwinding form of magnetic powder brake.
B). The material coil is installed by the key air-expanding shaft.
D) Using photoelectric automatic deviation correction system for discharging material. Slitting accuracy ±0.5mm
(2) Specifications
A) The maximum width of drum material is 1300mm
B), the maximum diameter of drum material φ 420mm (standard) φ 500 (customized)
C), magnetic powder brake specification 50n. M
E) Rectifying motor Synchronous motor
2. Traction part：
(1) Structure
A) The double roller phase pressure drives the cutting material to move. The active roller is steel roller, and the pressure roller is rubber roller.
B) a motor drives the traction roller to rotate and passes through the connecting wheel. Reel in and turn.
(2) Specifications
A) diameter of traction roller and press roller is φ 105mm
B) main motor three-phase asynchronous motor P= 3KW
C), frequency converter 3. Kw Ourui
3．Cutting part
(1) Structure
(2) Specifications
4. Winding department
A) The retracting reel is a double-working key strip type air-swell shaft. (Pneumatic clutch)
B) the rewinding reel is driven by the main motor through 3-minute double-row chain and magnetic powder clutch.
C) Self-weight roll is adopted for winding press roll to ensure neat winding.
(2) Specifications
A) The maximum winding diameter is φ 420mm
B), winding width range of 50-1300mm
C), winding paper core φ 76× φ 95

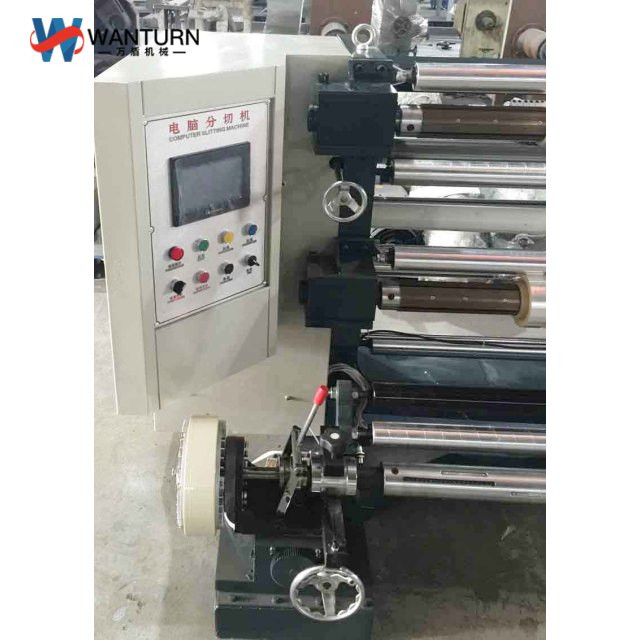

Note: PLC control with touch screen, automatic winding tension and unwinding tension
