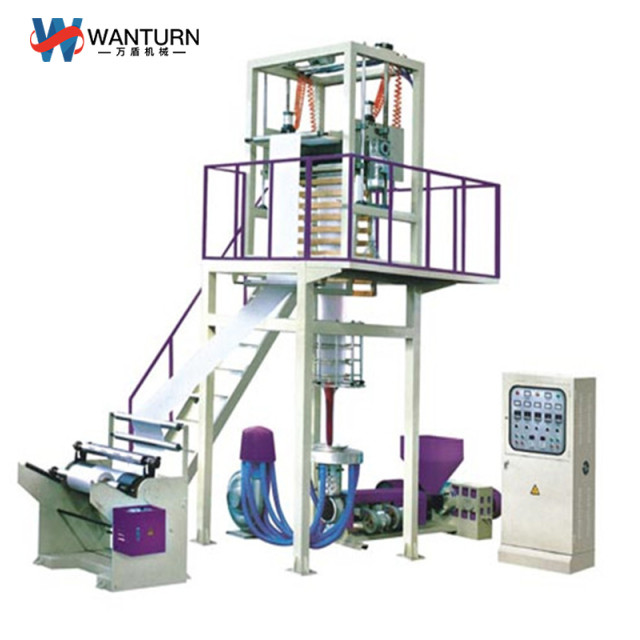

This film blowing machine is to satisfy the customer's requirements of high quality, high output film blowing equipment.
Compared with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consumption, easier operation. and create the considerable economic benefit for you.
|
Model |
WT-A50 |
WT-A55 |
WT-A65 |
|
Raw Material |
HDPE, LDPE, LLDPE; Virgin and Recycled |
||
|
Film Width |
600mm |
800mm |
1200mm |
|
Output |
30Kgs |
40Kgs |
65Kgs |
|
Film Thickness |
0.01mm-0.15mm |
||
|
Dimension |
4×3×4M |
5×3.5×4.5M |
6×4×5.5M |
|
Screw Diameter/LD ratio |
50mm 28:1 |
55mm 30:1 |
65mm 30:1 |
|
Motor |
11KW |
15KW |
22KW |
|
Gearbox |
133 |
146 |
173 |
|
Die Head Type |
Fixed Die Head |
||
|
Die Size |
50/80mm |
80/160mm |
160/260mm |
|
Upper Tower Type |
Up and down; Embossing roller and gusseting |
||
|
Roller Length |
700mm |
900mm |
1400mm |
|
Roller Working Way |
Opened and Tightened By Air Cylinders |
||
|
Winder Type |
Single winding fraction type |
||
|
Rollers |
700mm |
900mm |
1400mm |
|
Winding Diameter |
650mm |
||
|
Electronics |
Top China Brand |
||
 |
||

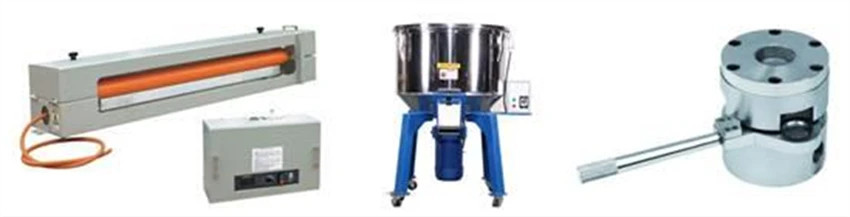

| Corona treatment | Auto mixer | Quick screen change |
